Ductile Iron Fittings

Rashmi Metaliks delivers a complete portfolio of Ductile Iron (DI) Fittings, available in diameters from DN 80 to DN 1600 mm, engineered to address diverse project specifications. Our solutions feature:

  • Multiple joint configurations for flexible installation
  • Customizable coatings and linings to meet application-specific demands

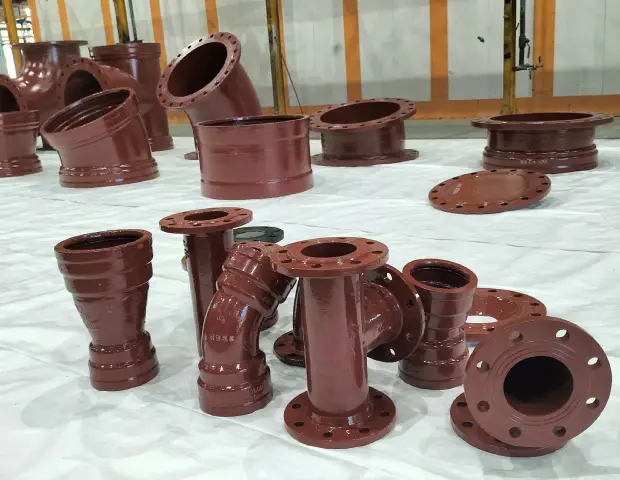

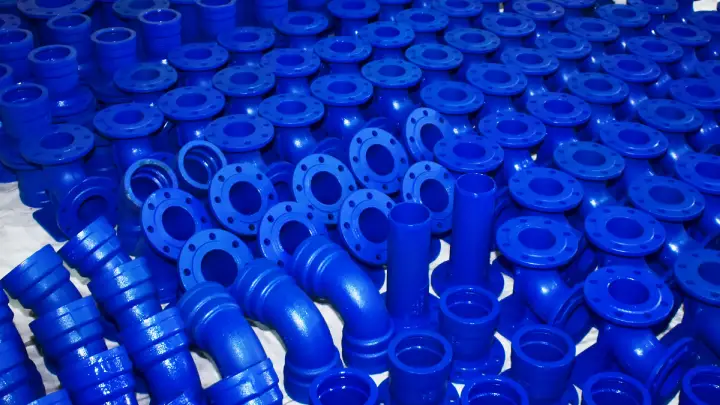

  • Enhanced durability through fusion-bonded epoxy coating (minimum 250µm thickness) WRAS-approved Blue for potable water systems Red for sewerage applications
  • Full compliance with EN 545, EN 598, and EN 14901 standards

Designed for peak performance in challenging environments, our fittings undergo rigorous quality assurance. Additional specialized coatings can be provided to meet unique project requirements, ensuring optimal corrosion resistance and longevity.

THREE PRINCIPLE JOINT TYPES

  • Socketed
  • Flanged
  • Self Restraining

EXTERNAL PROTECTION OPTIONS FOR FITTINGS

  • Fusion Bonded Epoxy Coating
  • Polyurethane Coating
  • Zinc Rich Paint With A Liquid Epoxy Finishing Layer

INTERNAL PROTECTION OPTIONS FOR FITTINGS

  • Fusion Bonded Epoxy Coating
  • Cement Mortar Lining
  • Ceramic Epoxy

Why Choose Rashmi DI Fittings?

As a premier global supplier of Ductile Iron (DI) Fittings, Rashmi Pipes delivers engineered solutions that combine precision engineering with uncompromising quality. Our products stand out for their:

  • Versatile Jointing Systems: Multiple connection options for flexible installation
  • Advanced Protection: Customizable internal/external coatings for enhanced durability
  • Global Compliance: Meets international and European standards (EN 545, EN 598, ISO 2531)
  • Optimized Performance: Ensures efficient flow and leak-proof connections

Available in comprehensive sizes (DN 80 to DN 1600) and configurations, our DI fittings provide reliable, long-lasting solutions for water distribution networks—backed by ease of installation and proven performance in demanding environments.


Product Range

Rashmi Pipes supplies premium A+ grade DI Fittings in diameters ranging from DN 100 to DN 1600, engineered to meet diverse industrial and municipal requirements.

Key Advantages:

  • Superior Safety Factor: Designed for reliable performance under demanding conditions
  • Comprehensive Size Range: Ensures compatibility with varied project specifications
  • Versatile Applications: Ideal for water distribution, wastewater management, and industrial piping systems

Our DI Fittings deliver exceptional jointing solutions, combining structural integrity with long-term durability for critical infrastructure projects.

Mechanical Properties of Rashmi DI Pipe Fittings
Mechanical Properties Values
Tensile Strength Min. 4,200 Kg/cm2 or 420 MPA
Elongation MIN 5%
Hardness Max. 250 BHN

Technical Specifications
Product Ductile Iron (DI) Pipe Fittings suitable for Push-on-Joints & Flange Joints
Size (Range) DN 80 to 1600
Class K-12 & K-14
Internal Linings Cement Mortar Lining of OPC/BFSC/SRC/HAC
Cement Lining with Epoxy Seal Coat
Cement Lining with Bituminous Seal Coat
FBE Coating
External Coating-1 Zinc Coating (150 g/m2) or 220 kg/m3
External Coating-2 Bitumen Coating
Blue Epoxy
Red Epoxy
Black Epoxy
FBE Coating
Outside OnSite Protection Polyethylene Sleeving
Coating of Joint Area 11.5 x 10-6 per degree celsius (°C) (for temperature range 200°C -1000°C)
Conforming Specifications EN 545:2010/EN 545:2006
ISO 2531:2009/150 2531:1998
EN 598:2007/ISO 7186:2011
IS 9523:2000

Angular Deflection of Rashmi DI Pipe Fittings For Push-on-Joints
Diameter Range (DN) Angular Deflection
DN 100 - DN 300 3°30'
DN 350 - DN 600 2°30'
DN 700 - DN 1200 1°30'

At Rashmi Metaliks, we engineer Ductile Iron Fittings that redefine reliability in pipeline networks. With precision manufacturing, superior materials, and rigorous quality control, our fittings ensure leak-proof performance and long-term durability for water and wastewater systems.

Why Professionals Choose Us:

  • Full range of sizes (DN 80 - DN 1600)
  • Multiple jointing and coating options
  • 100% compliance with EN/ISO standards
  • Proven performance in demanding applications

Partner with us for fittings that combine engineering excellence with unmatched service. Contact our team today to discuss your project requirements.
